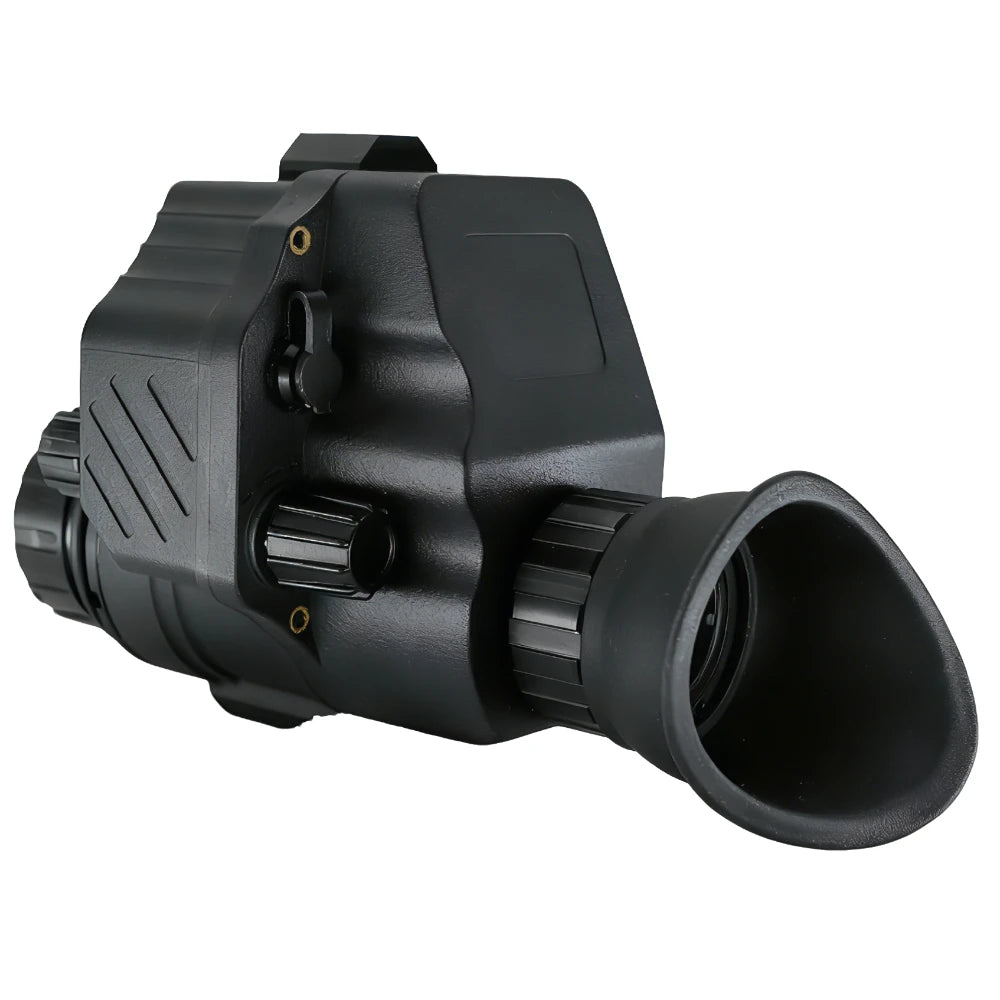

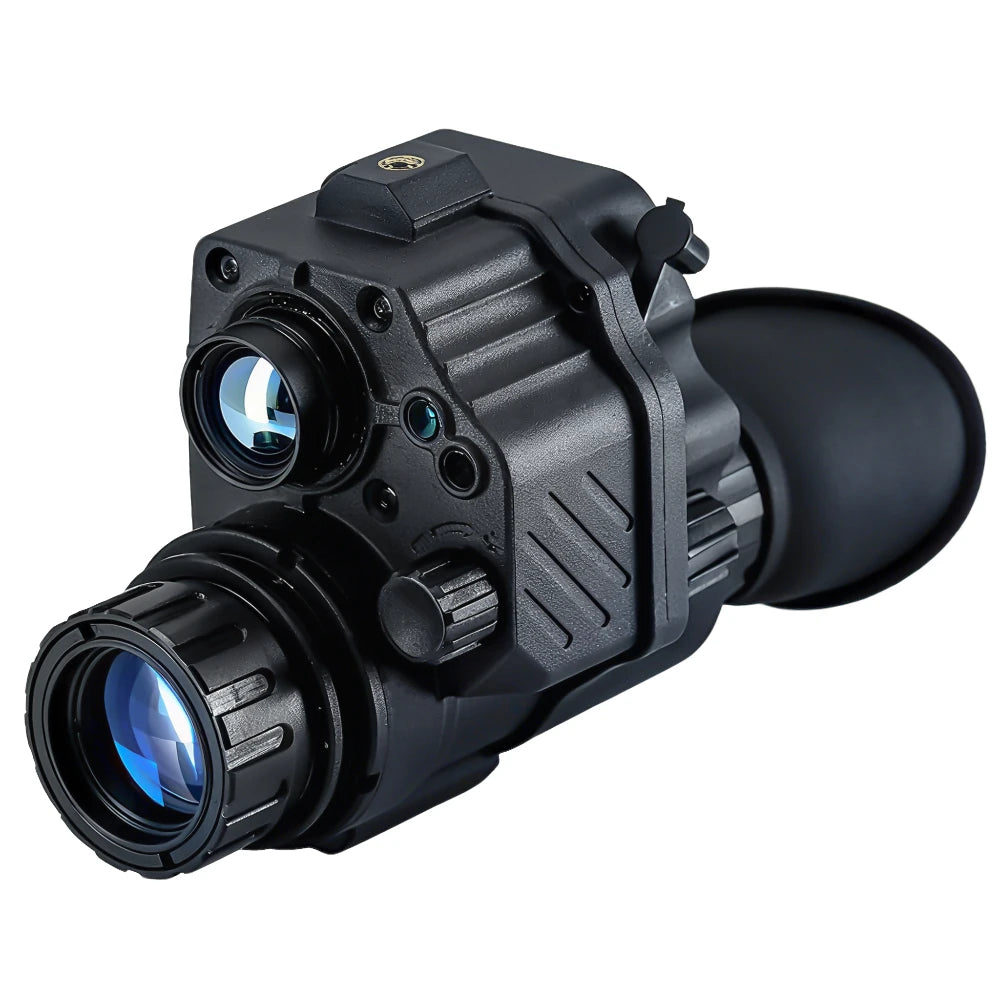

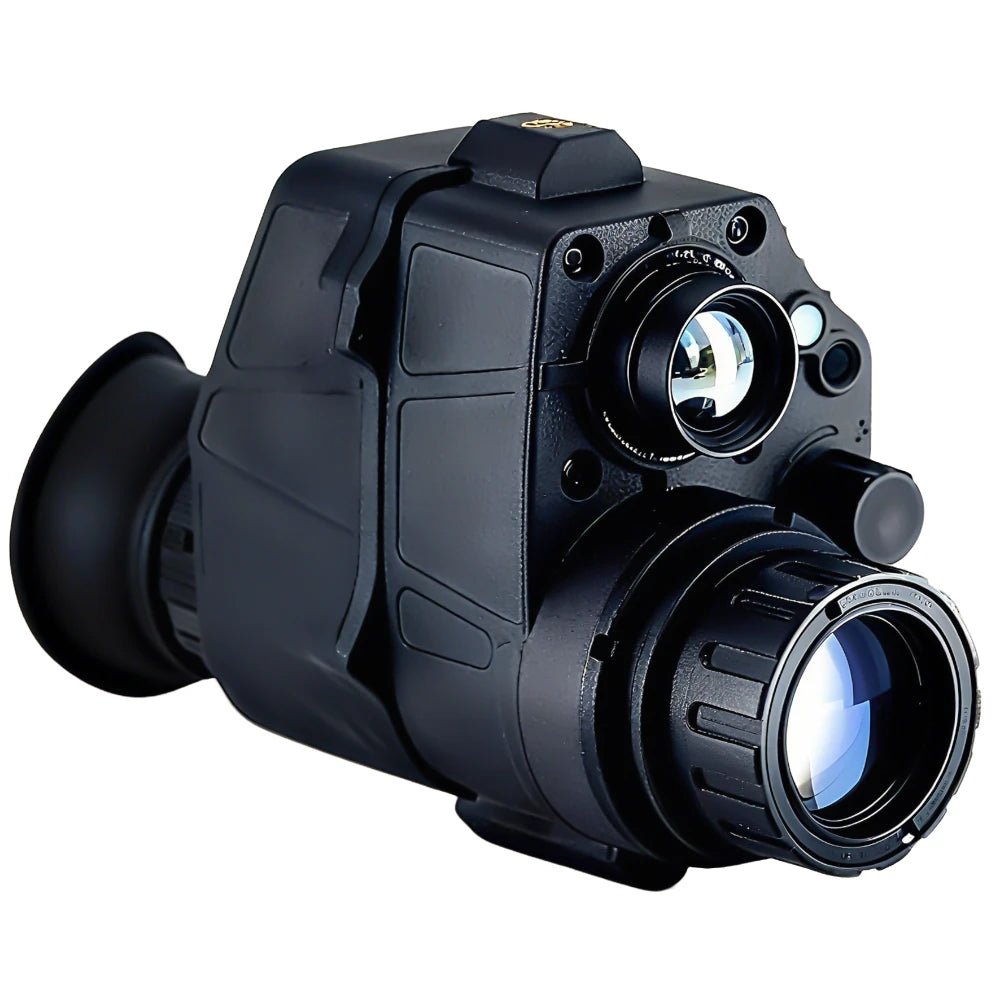

The RSNV-F-PVS14 is a fused night vision and thermal monocular, combining image intensifier (IIT) and thermal imaging technologies into a single compact device. Designed for use in extreme low-light conditions, adverse weather, and challenging environments, it enhances visibility while helping detect hidden threats and camouflaged targets.
With multiple imaging modes and a lightweight, rugged design, the RSNV-F-PVS14 delivers versatile performance for a wide range of applications.
Key Features
- Fusion of night vision and thermal imaging technology
- Multiple image modes for enhanced target detection
- Compact, lightweight, and durable construction
- Waterproof and dust-resistant design

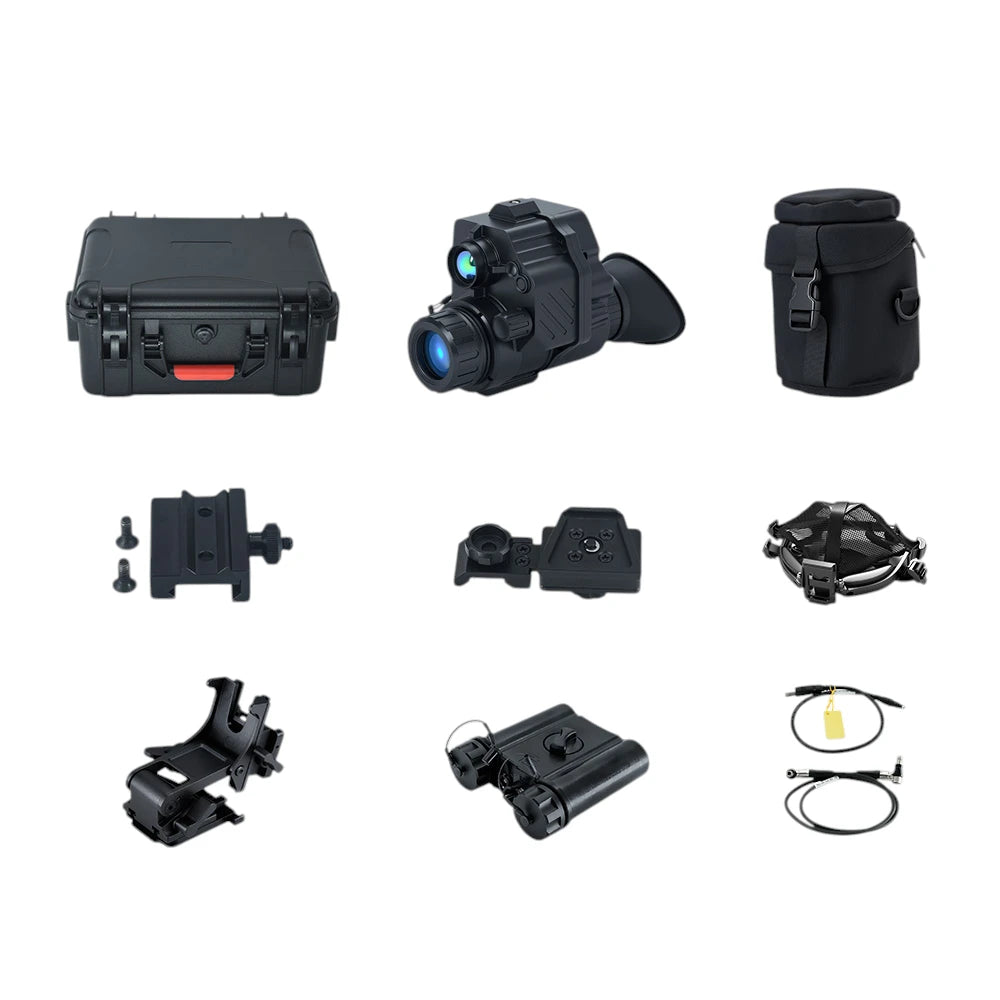

- Multi-use configuration: handheld, helmet-mounted, or head-mounted
| Class |
Gen2+/Gen3 (Optional) |
| Resolution |
>60 lp/mm |
| FOM |
1200 (Optional: 1400 / 1600 / 1800) |
| Focal Length (IIT) |
26mm |
| Focus Range |
250mm |
| FOV (IIT) |
40° |
| Thermal Sensor |
640 × 512 px @ 12μm |
| Focal Length (Thermal) |
18mm |
| FOV (Thermal) |
24° × 18° |
| Magnification |
1.0 ±5% |
| Diopter |
-5 ~ +4 |
| Weight (Excl. Battery) |
≤350g |
| Dimensions |
124 × 56 × 88 mm |
| Power Supply |
External battery pack (2 × 18650 lithium batteries) |
| IR Illuminator |
940 nm |
| IP Rating |
IP67 |
| Operating Temperature |
-40°C to +50°C |
| Polarity / Modes |
White / Black / Red Hot / Outline / Highlight / Thermal |
