- Gen2+ image intensifier for low-light amplification
- Available in white phosphor or green phosphor
- High resolution performance (1300–2200 FOM options)
- Superior sensitivity for enhanced visibility
- Auto-gating image intensifier technology
- Optional manual gain control
- Customisable configurations available

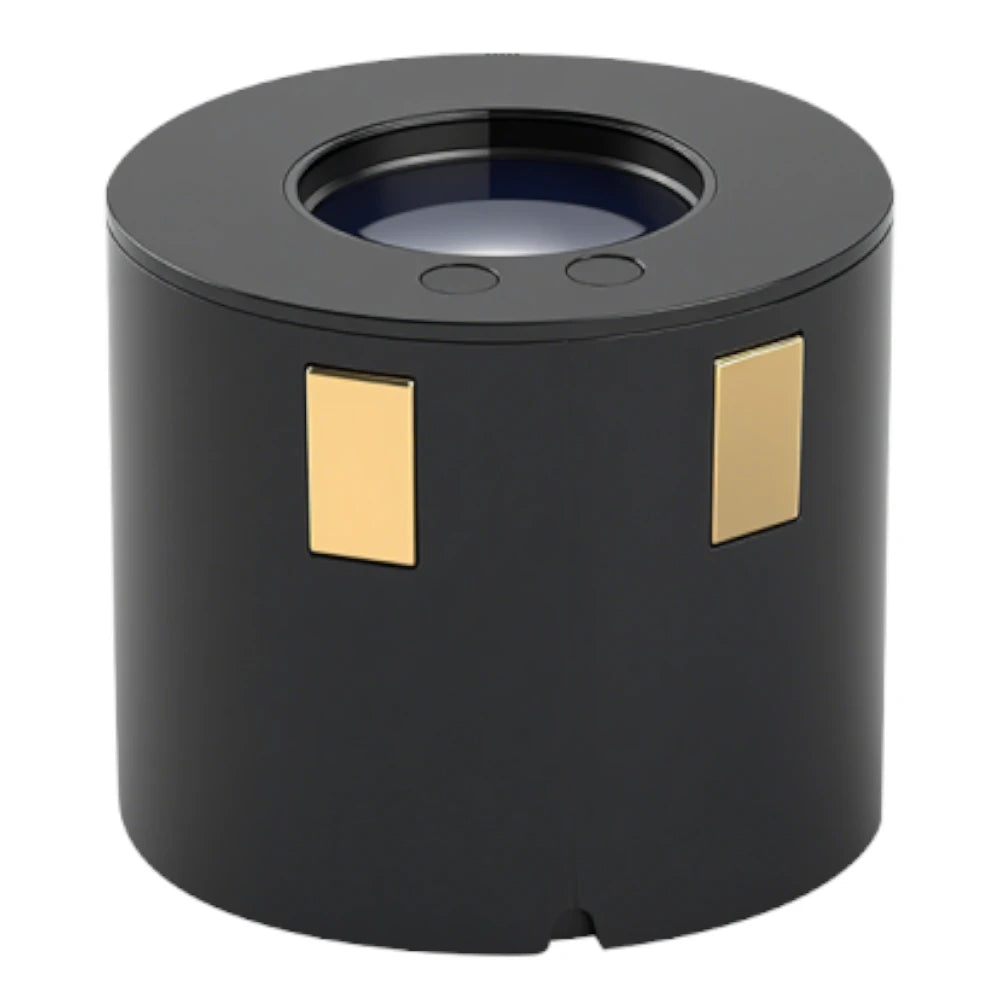

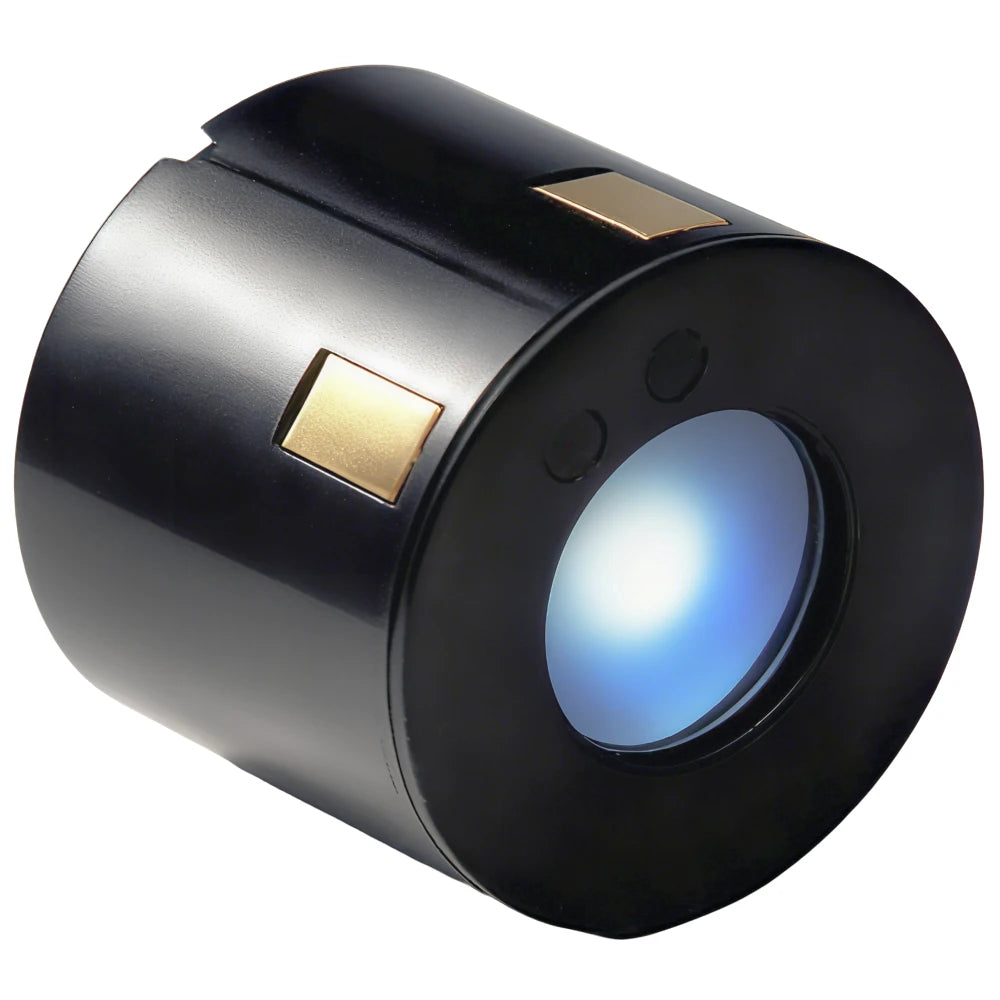

The Gen2+ Image Intensifier is a high-performance vacuum photoelectric imaging system designed to amplify low-light environments and convert them into clear, visible images. Built as a complete unit with an integrated intensifier tube and high-voltage power supply, it delivers reliable and consistent performance across a wide range of applications.
Available in both white phosphor and green phosphor options, this system offers flexibility to suit user preference and operational needs. With high sensitivity and strong resolution output, it enhances visibility in challenging conditions while maintaining clarity and detail.
Designed with auto-gating capability and optional manual gain control, this intensifier tube provides stable performance under varying light conditions. Customisation options further allow you to tailor the unit to specific requirements.
| Parameter |
≥1200+ |
≥1400+ |
≥1600+ |
≥1800+ |
≥2000+ |
Unit |
| Photocathode Diameter |
≥17.5 |
mm |
| Cathode Material |
Na2KSb(Cs) |
- |
| Input Window |
AVG glass |
- |
| Brightness Gain |
8000–12000 |
cd/m²/Lx |
| Phosphor |
P43 / P45 |
- |
| Photocathode Sensitivity |
/ |
641 |
901 |
805 |
968 |
µA/lm |
| SNR |
20.07 |
25.04 |
26.97 |
25.45 |
27.93 |
- |
| Resolution |
64 |
64 |
64 |
72 |
72 |
lp/mm |
| Luminance Gain |
≥8000 |
cd/m²/lx |
| Max Output Brightness |
4–8 |
cd/m² |
| EBI |
≤0.25 |
µlx |
| Input Current @3V |
≤20 |
mA |
| Input Voltage |
2.2–3.4 |
V |
| Weight |
≤75 |
g |
| Power Supply |
Non-gated / Gated / External gain / External brightness |
- |
| Electrical Interface |
Double contact / Three-lines type |
- |
| Operating Temperature |
-45 to +55 |
°C |
| Storage Temperature |
-55 to +70 |
°C |
| Output Window |
Inverting spherical (SR40) / Inverting flat / Non-inverting spherical (SR40) / Non-inverting flat |
- |
| HV Power Supply |
Non-auto-gating (Auto-gating optional) |
- |
