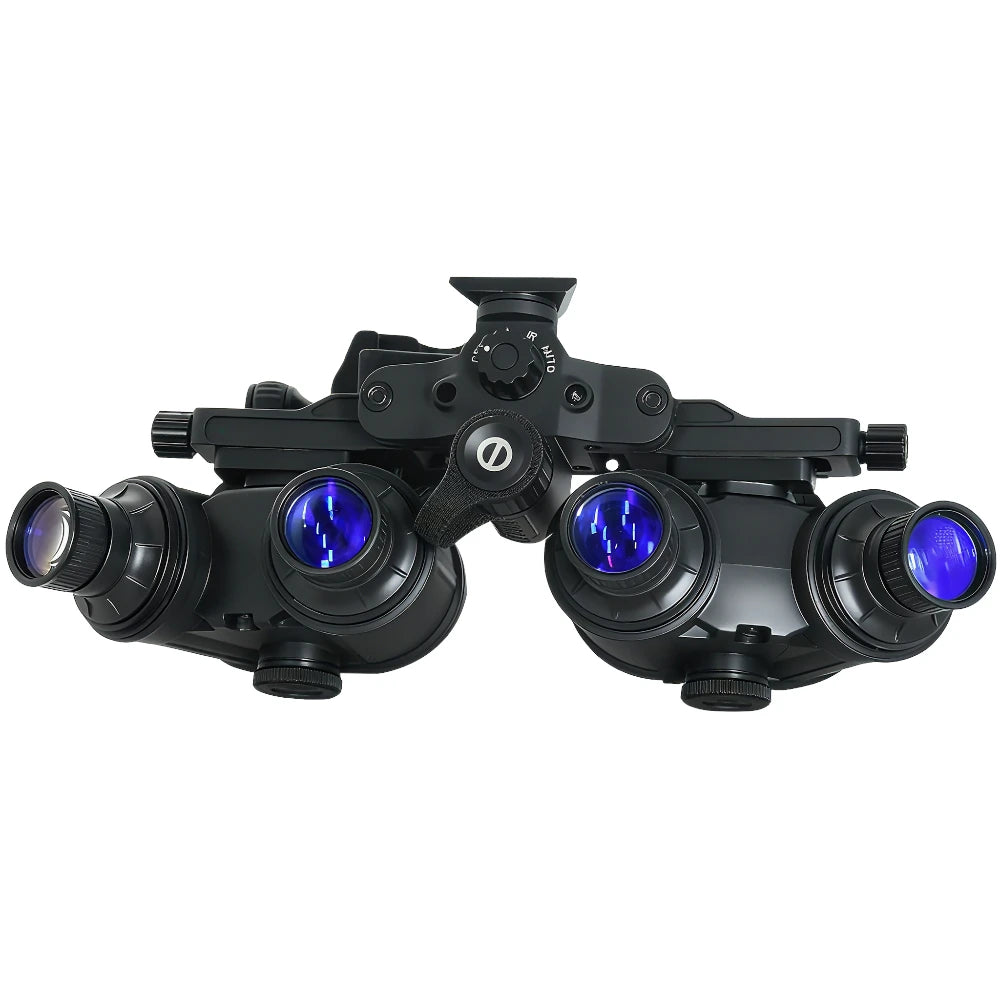

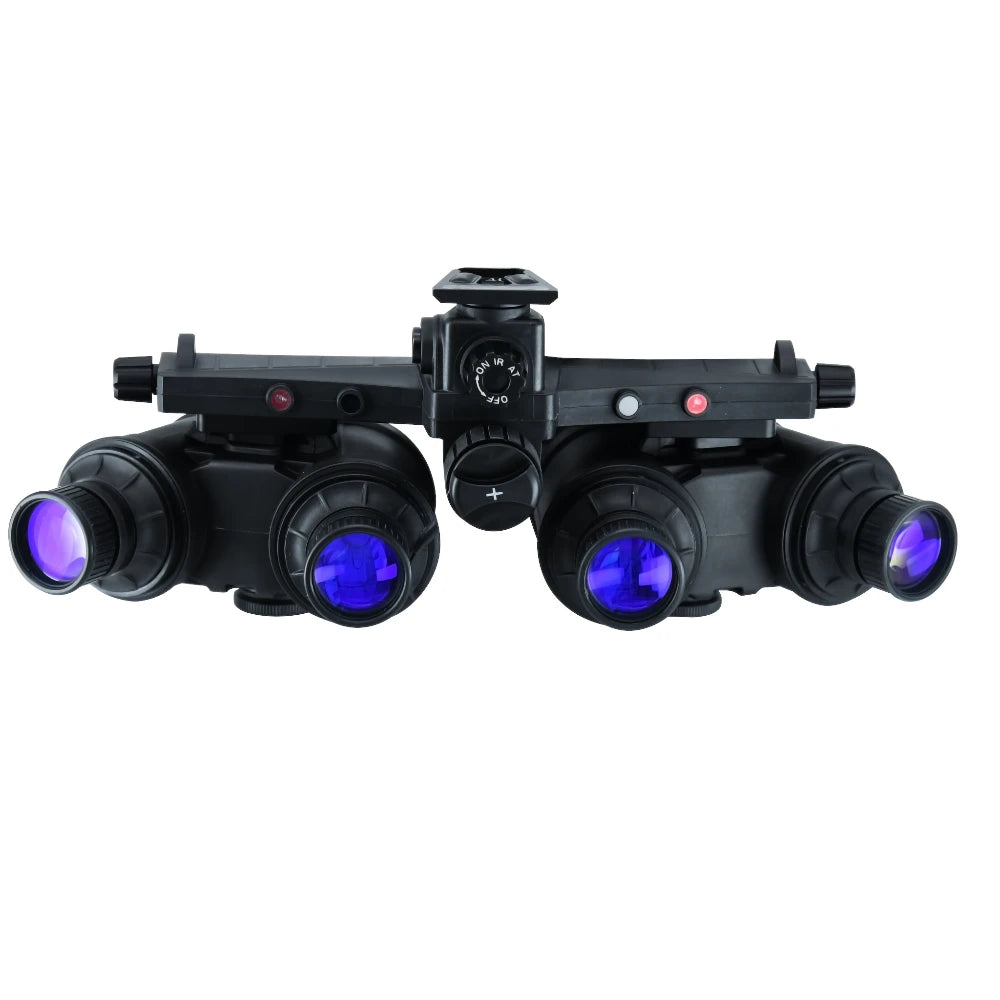

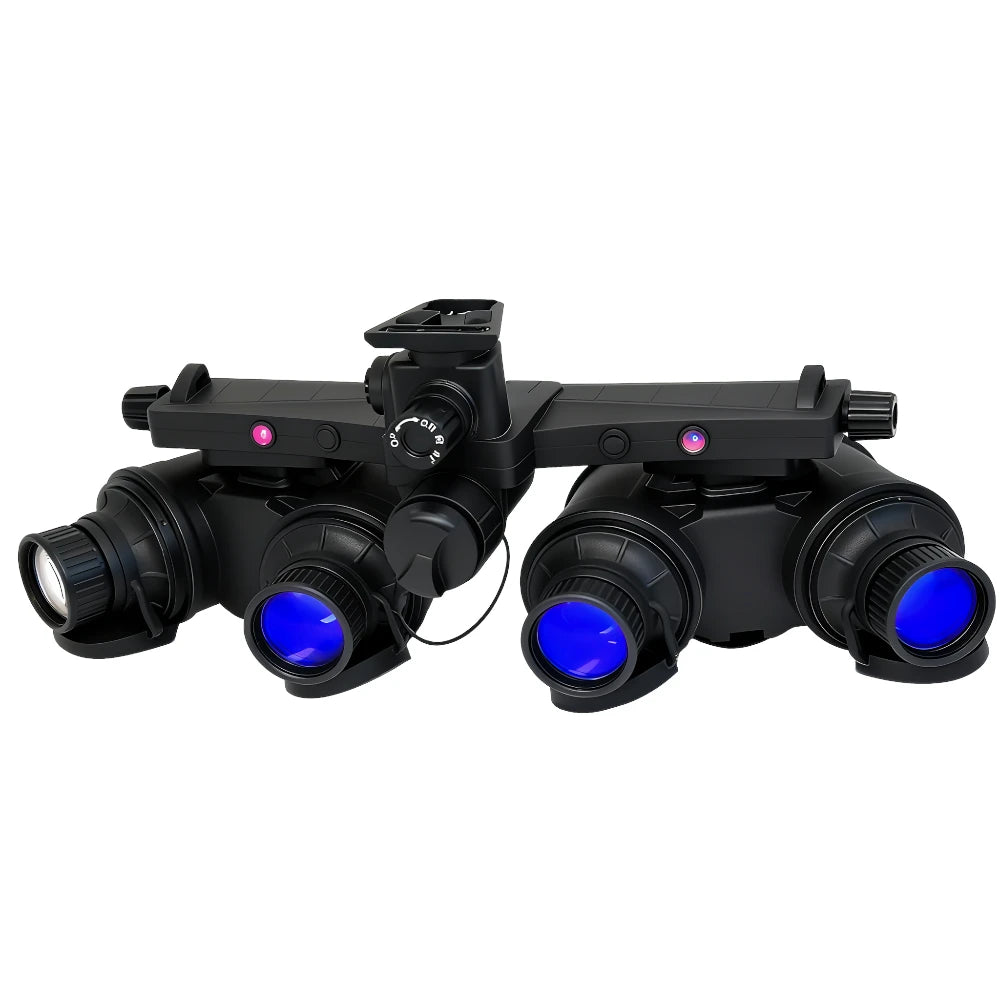

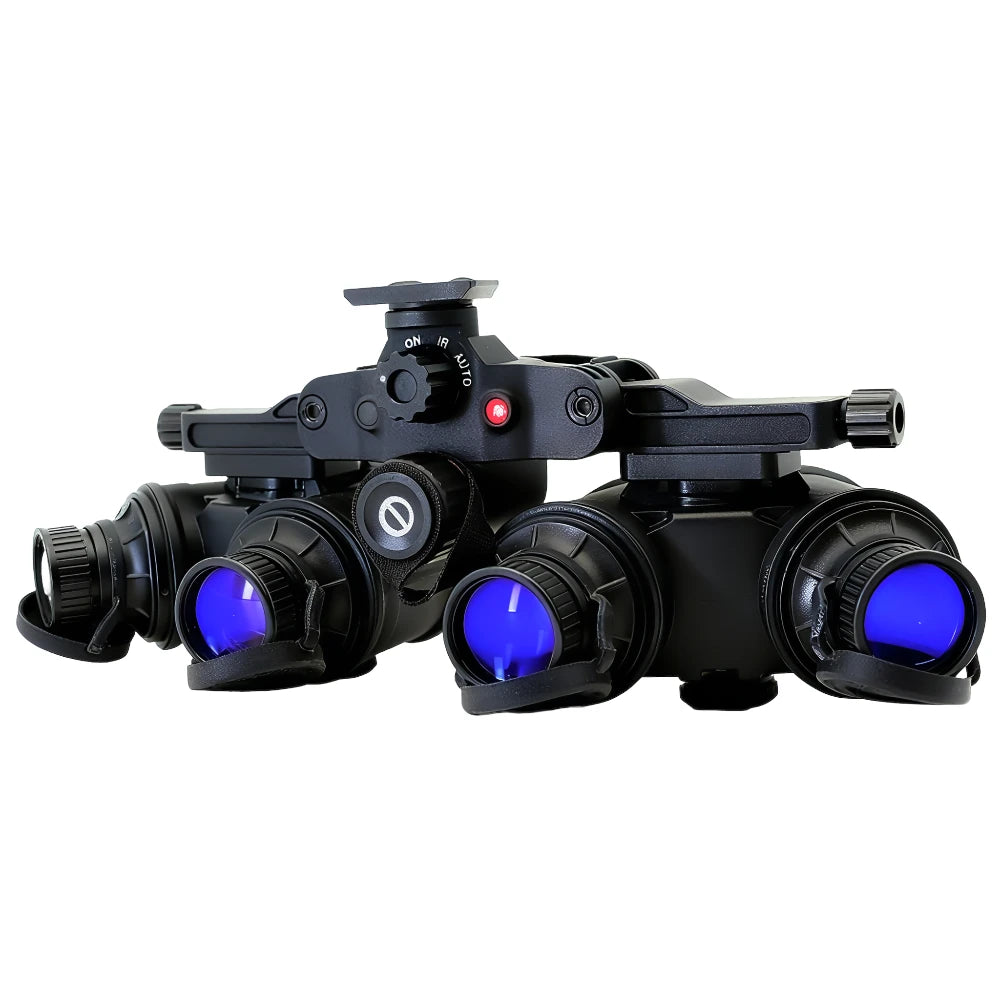

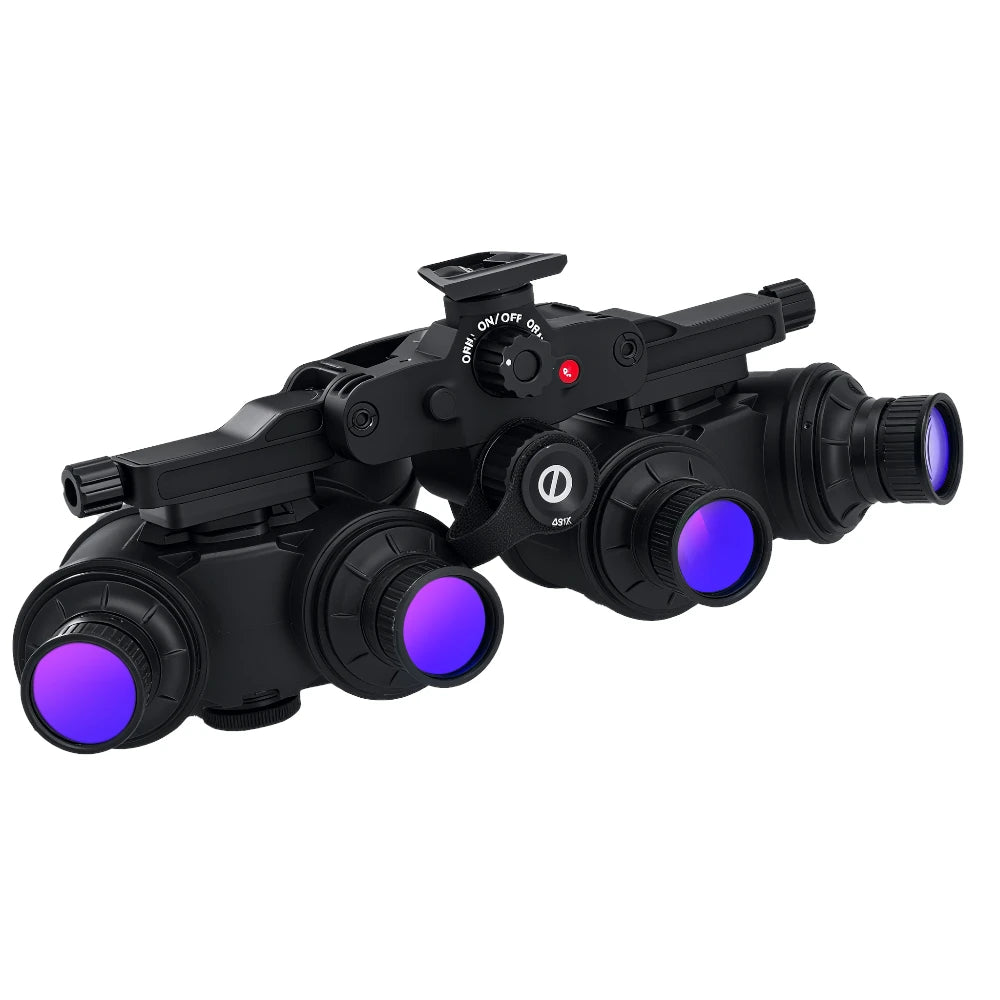

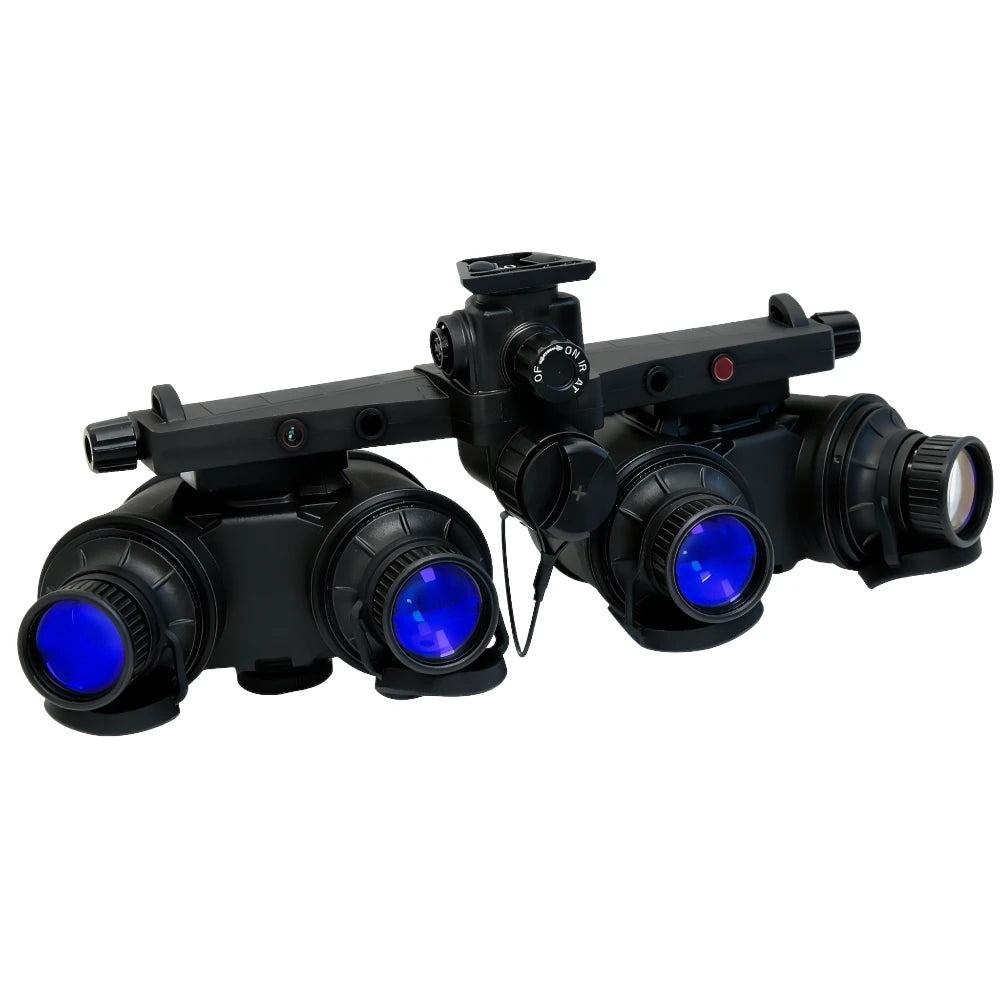

The RSNV-GPNVG is an advanced four-tube night vision system designed for panoramic ground observation. With a wide 120° field of view, it significantly enhances situational awareness by combining forward depth perception with extended peripheral vision, allowing users to process more information and react faster in low-light environments.
Featuring a quad-lens panoramic layout, the system seamlessly fuses images at the eyepiece for a natural, immersive view. Built for versatility and durability, the RSNV-GPNVG is engineered to perform in demanding conditions.
Key Features
- 120° panoramic field of view for maximum situational awareness
- Quad-tube, multi-lens system for depth and peripheral vision
- Detachable left or right pod for modular use
- Adjustable and lockable interpupillary distance

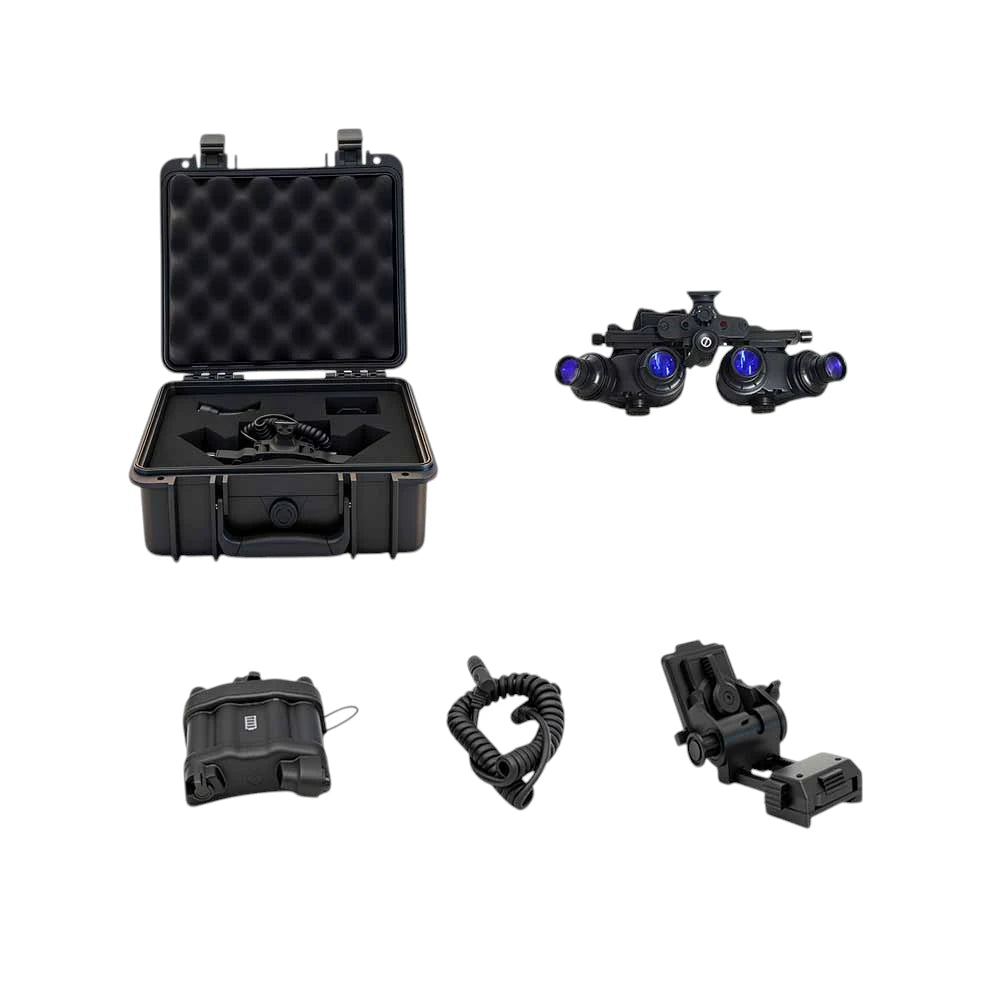

- Multi-use configuration: handheld, helmet-mounted, or head-mounted
- IP65/IP67 protection rating (model dependent)
| Generation |
Gen 2+/Gen3 (Optional) |
| Magnification |
1x |
| FOV |
120° × 50° (Horizontal 120° ±2°, Vertical 50° ±2°) |
| Diopter |
+1.5 ~ -2.5 |
| Capability |
Flip-up / On-off |
| Automatic Brightness Control |
Yes |
| Bright Light Cut-off |
Yes |
| Infrared Illuminator |
Built-in (850nm, 20mW) |
| IR Indicator |
Yes |
| Low Battery Indicator |
Yes |
| Battery Type |
CR123A x1 / CR123A x4 (battery pack) |
| Power Supply |
2.6–4.2V |
| Battery Capacity |
800–3200 mAh |
| Optical Distortion |
0.5% Max |
| Eye Relief (mm) |
30 |
| Pupil Diameter (mm) |
8 |
| Operating Temperature (°C) |
-40 to +55 |
| Humidity Range |
5%–95% |
| Waterproof |
IP65/IP67 |
| Dimensions (mm) |
150 × 130 × 75 |
| Weight |
495g (housing) / 780g (finished) |
