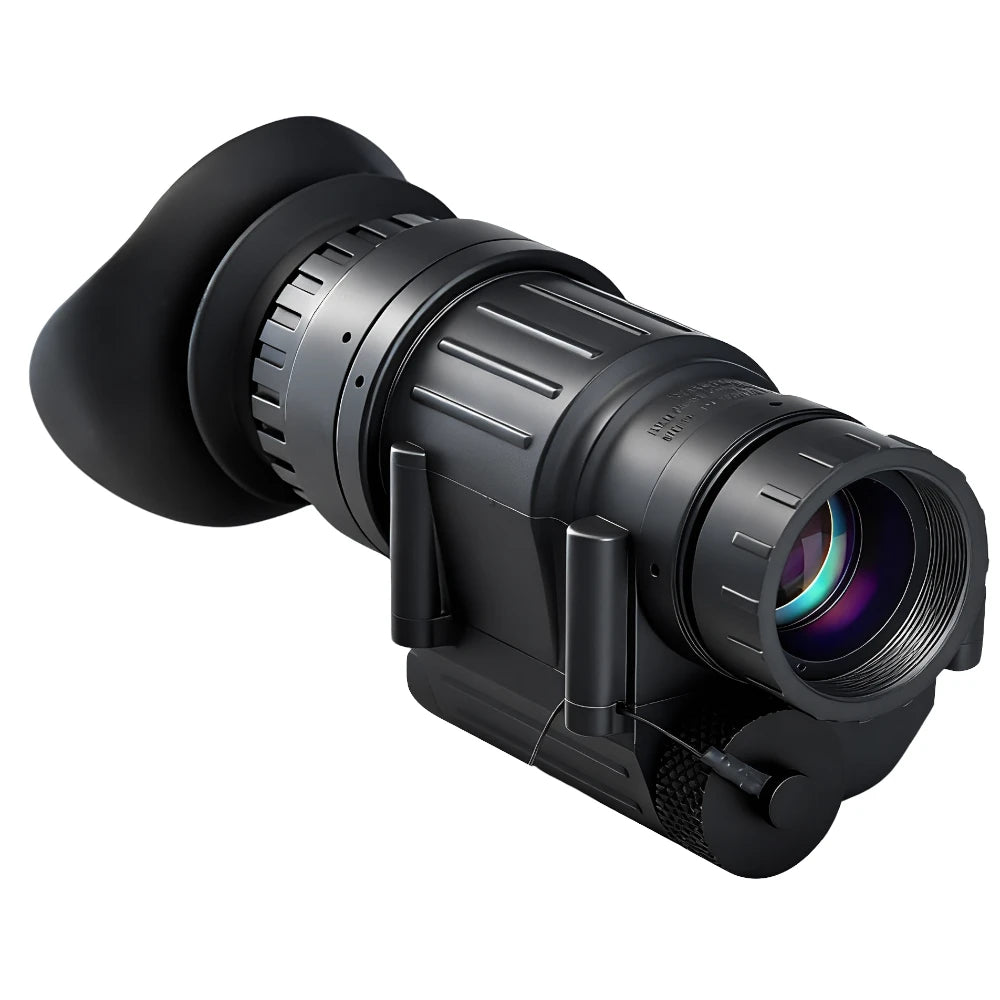

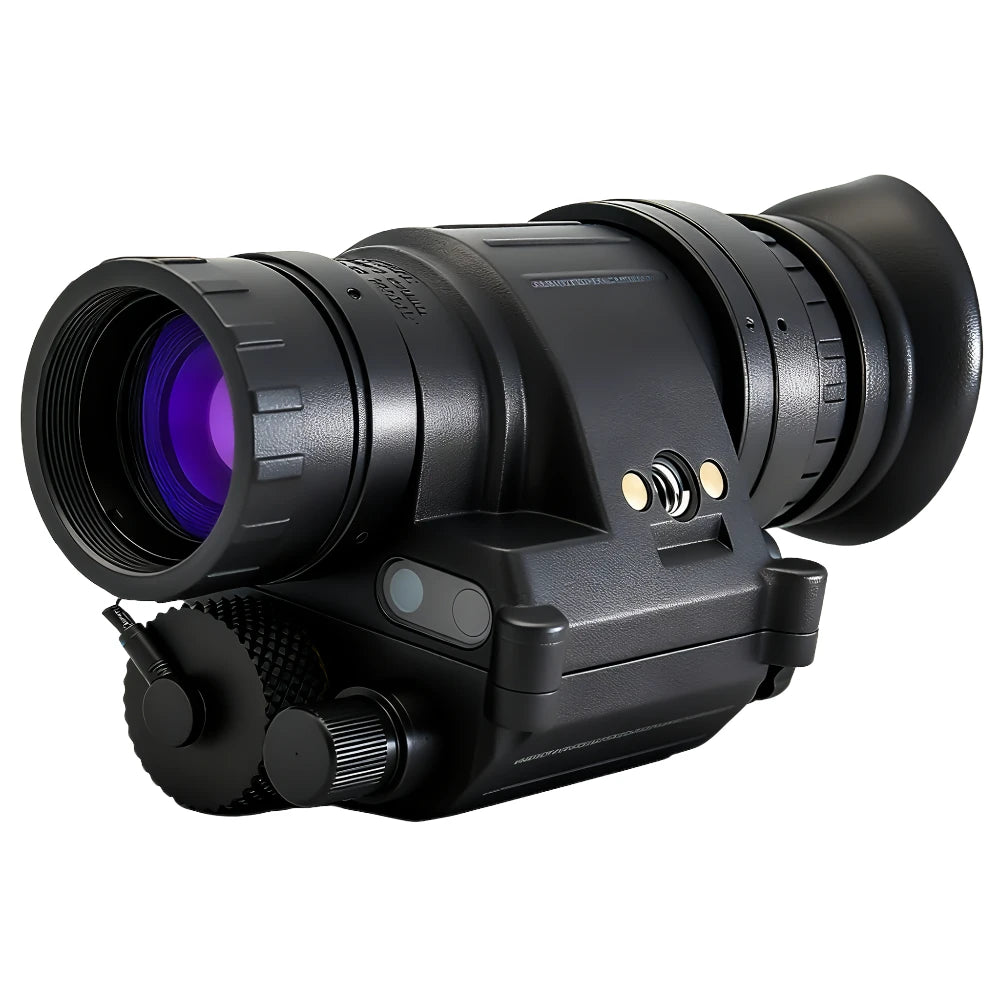

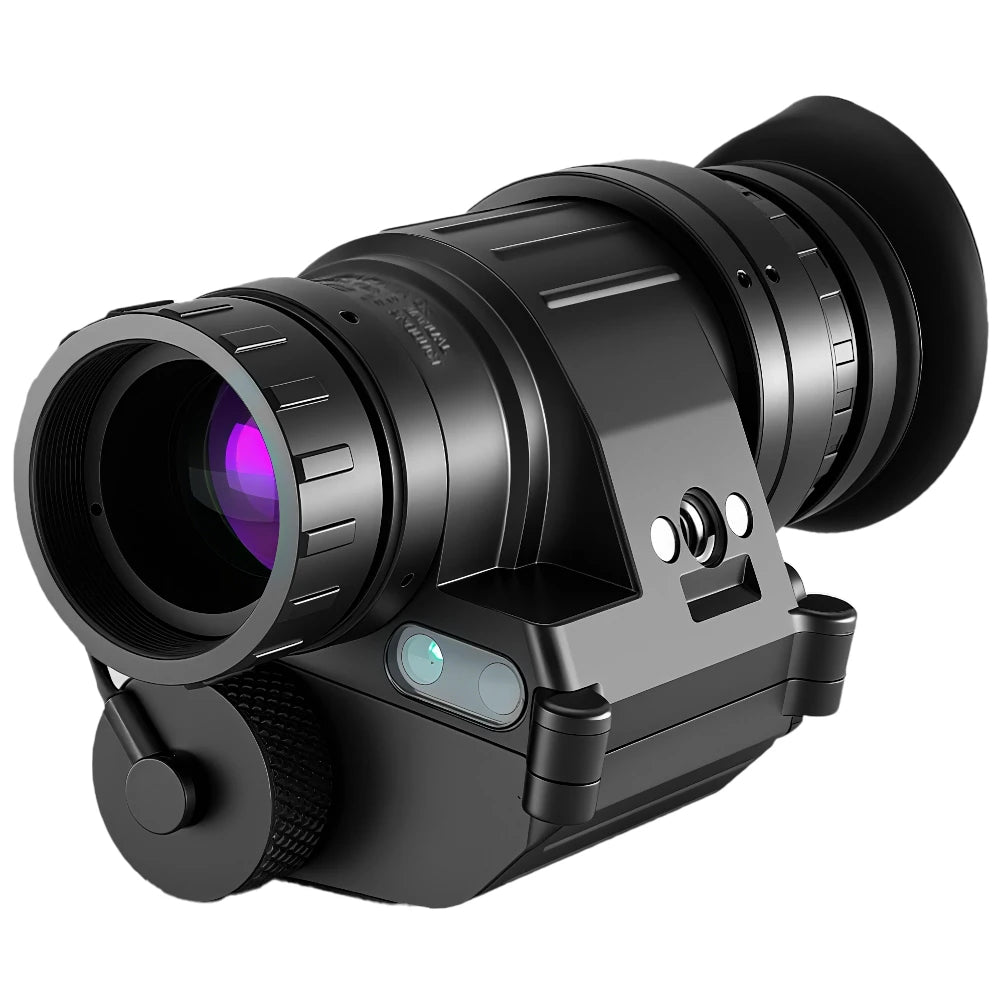

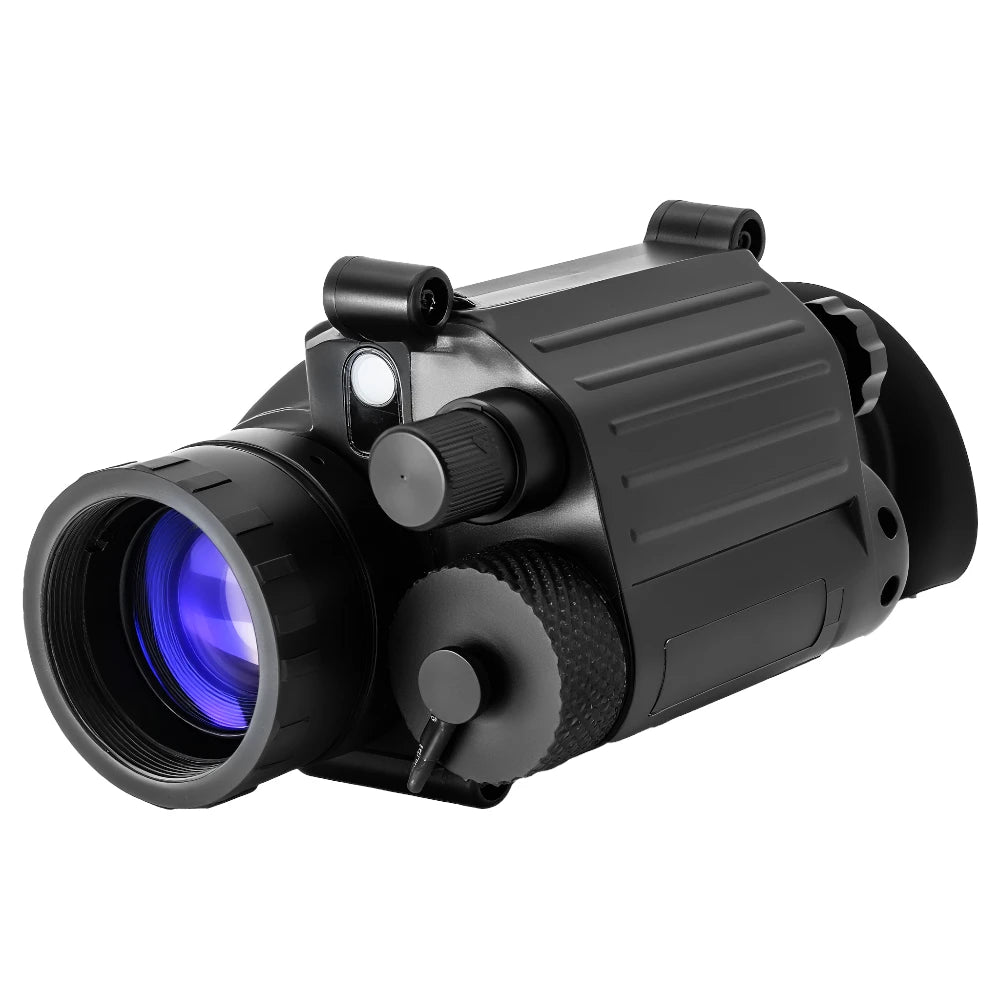

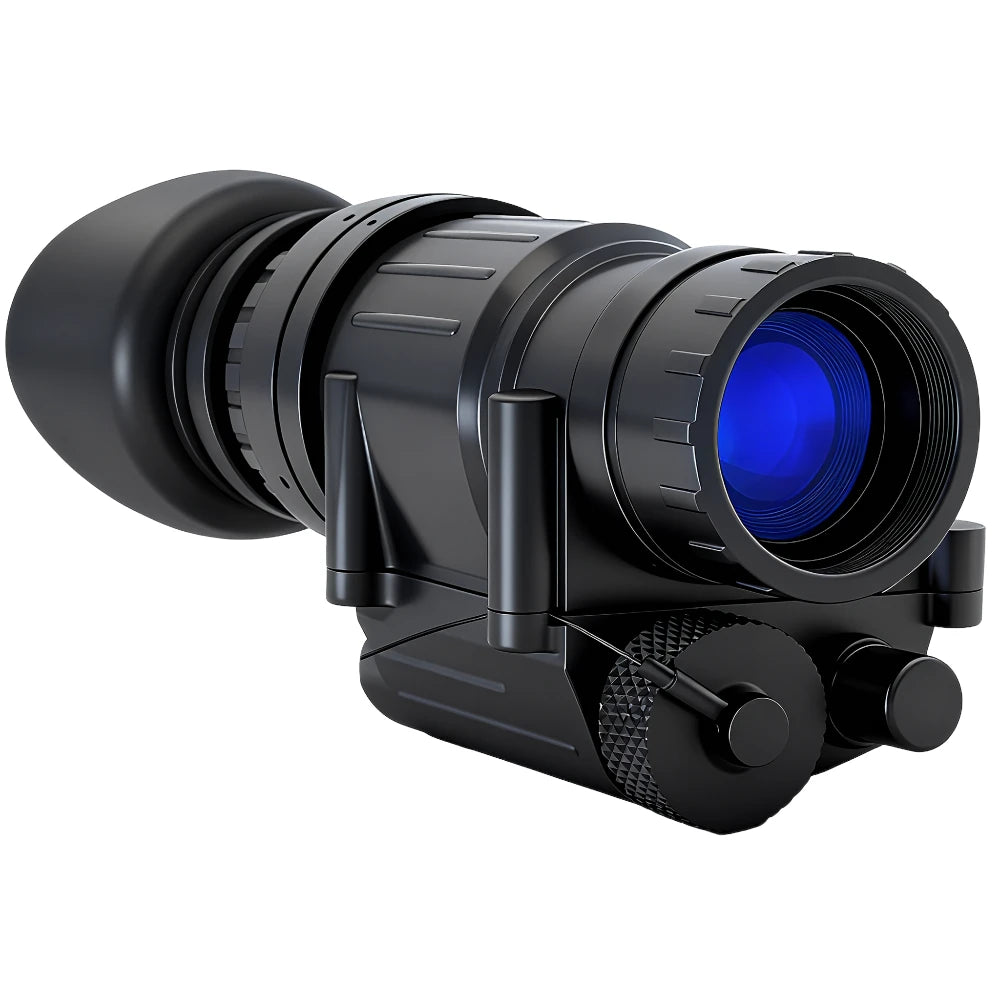

The RSNV-PVS14 series is a highly versatile and advanced night vision monocular, designed to deliver reliable performance across a wide range of applications. Built with a compact, rugged housing, it’s engineered for durability while maintaining a lightweight, user-friendly form factor.
An upgraded battery compartment enhances functionality with automatic power control—shutting off when flipped upright and instantly powering on when deployed, improving efficiency and ease of use in the field.
Key Features
- Compact, lightweight, and rugged design
- Waterproof and fog-resistant construction
- IP65/IP67 rating (model dependent)
- High-resolution imaging for clear visibility
- Available in white phosphor or green phosphor options

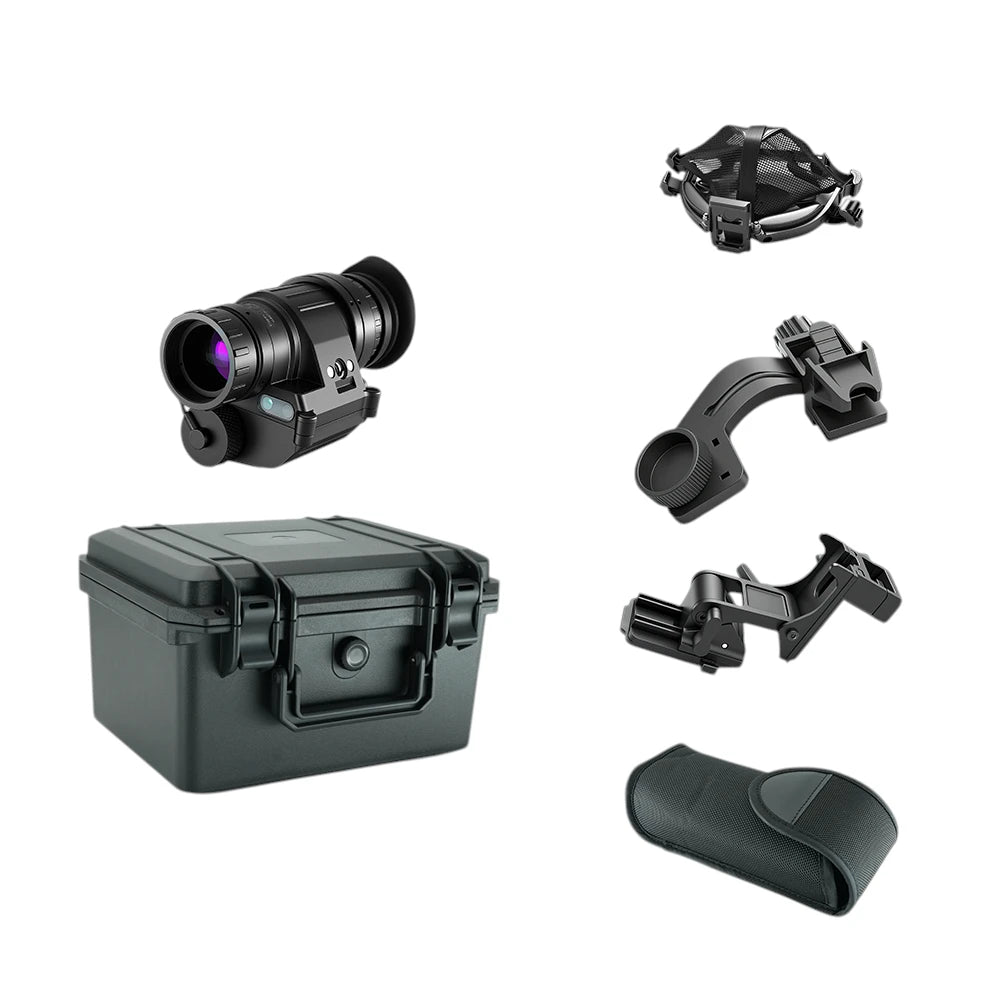

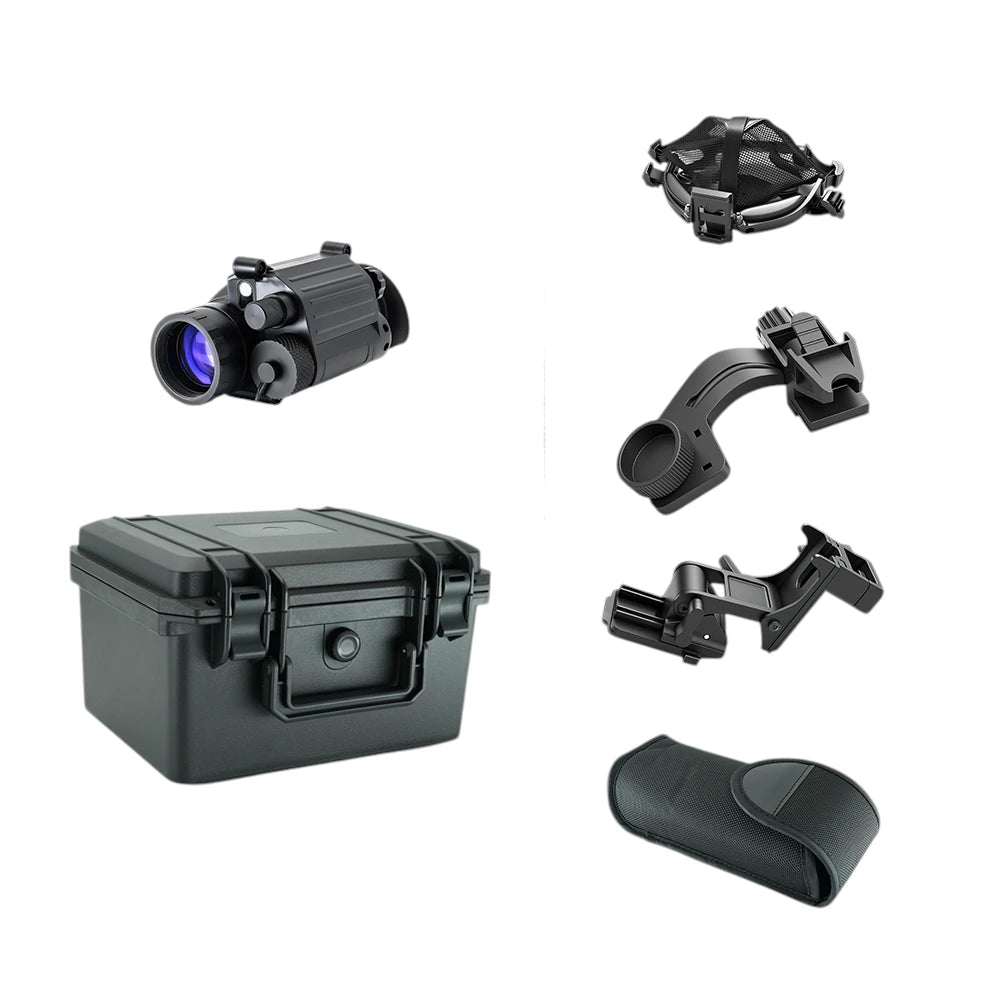

- Multi-use configuration: handheld, helmet-mounted, or head-mounted
| Specification |
RSNV-PVS14 |
RSNV-PVS14 Manual Gain |
| Magnification |
1x |
1x |
| FOV |
40° |
40° |
| Eye Relief Distance |
25mm |
25mm |
| Eye Relief Diameter |
14mm |
14mm |
| Diopter |
-6~+2 (customizable) |
-6~+2 (customizable) |
| Lens System |
25mm F1.2 |
25mm F1.2 |
| Eyepiece Lens |
25mm |
25mm |
| Focus Range |
250mm to infinity |
250mm to infinity |
| Dimensions |
114×70×60mm |
143×72×62mm |
| Weight |
310g (with battery) |
325g (with battery) |
| Battery Type |
CR123 |
CR123 |
| Battery Life |
30 hours |
30 hours |
| IR Illuminator |
Yes |
Yes |
| Highlight Protection |
Yes |
Yes |
| IIT Classification |
Gen2+/Gen3 |
Gen2+/Gen3 |
| Photocathode Type |
18mm S-25 |
18mm S-25 |
| Resolution |
>60 lp/mm |
>60 lp/mm |
| Luminous Gain |
19000–30000 |
19000–30000 |
| Signal-to-Noise Ratio |
>23 |
>23 |
| FOM |
1400+/1600+/1800+/2000+ |
1400+/1600+/1800+/2000+ |
| Manual Gain |
No |
Yes |
