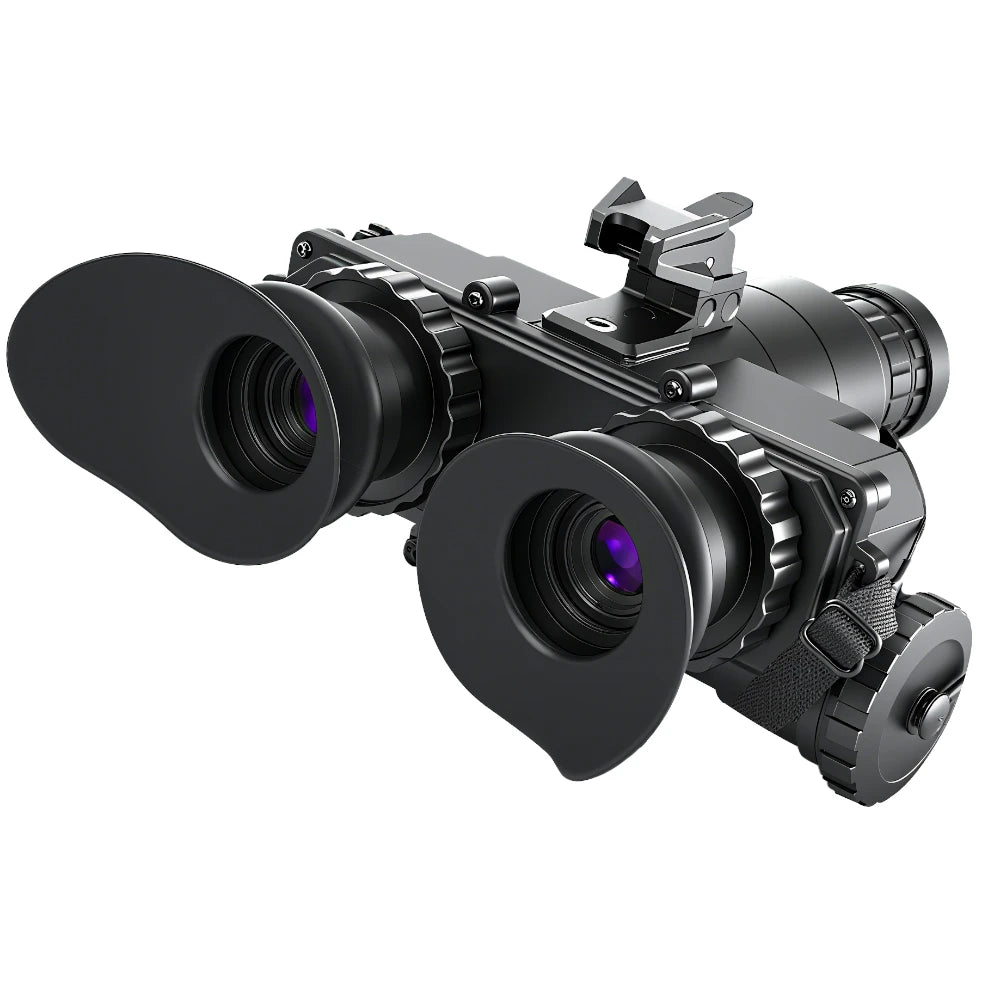

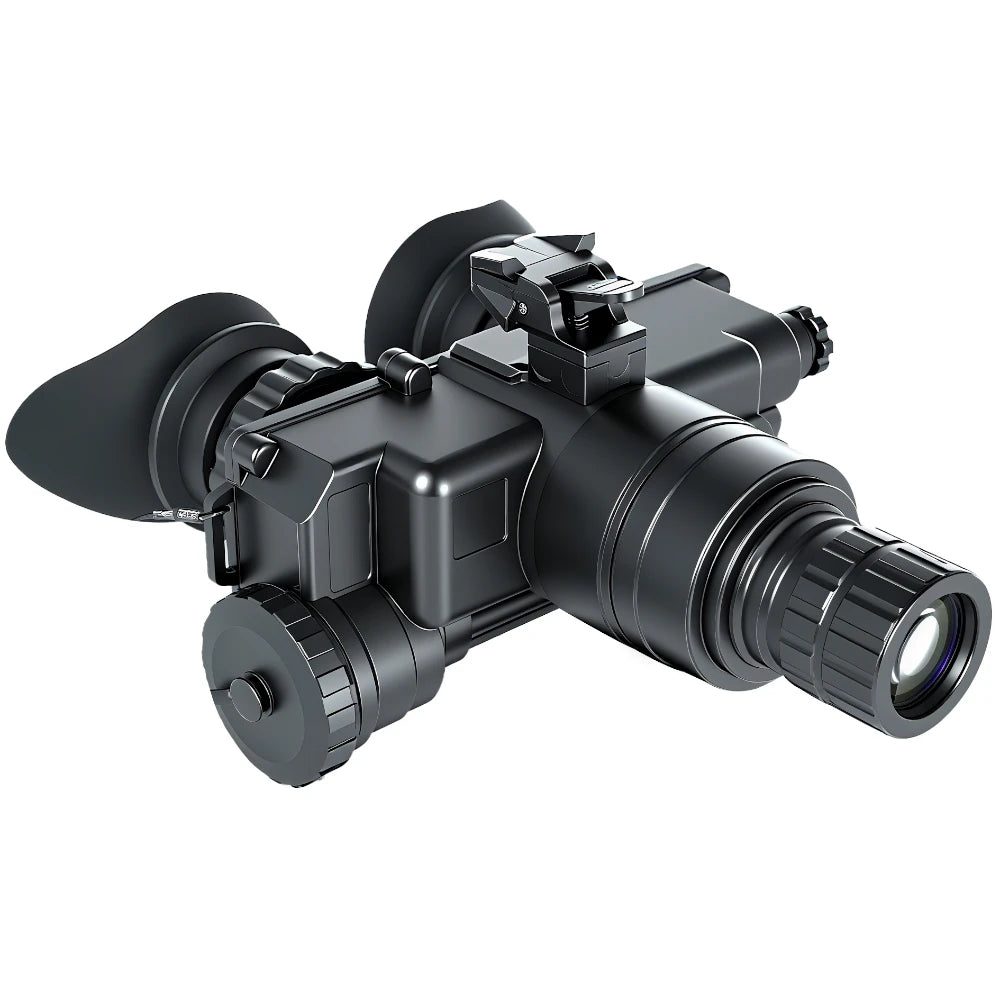

The RSNV-PVS7 Night Vision Goggles are built around a high-performance image intensifier tube, delivering clear and reliable imaging in low-light conditions. Designed for versatility, the system allows magnification adjustment through interchangeable objective or magnifier lenses, adapting to a range of applications.
With adjustable interpupillary distance and integrated features like infrared illumination, red indicator light, and automatic anti-glare protection, the RSNV-PVS7 offers a rugged and dependable night vision solution.
Key Features
- High-performance image intensifier for clear visibility
- Built-in infrared illuminator and anti-glare protection
- Adjustable interpupillary distance for user comfort
- Interchangeable lenses for variable magnification
- Multi-use configuration: handheld, helmet-mounted, or head-mounted
| Photocathode |
18mm S-25 |
| Resolution |
48–58 lp/mm / 57–64 lp/mm |
| S/N |
18–25 dB |
| Luminous Sensitivity |
500–900 μA/lm |
| Magnification |
1x |
| FOV |
42° ±3 |
| Detection Range |
250–300 m |
| Eye Distance Adjustment |
65 ±5 |
| Diopter Range |
-1 |
| Lens System |
25mm, F/1.2 |
| Coating |
Multilayer broadband coating |
| Focus Range |
0.25 m to infinity |
| BSP |
Yes |
| Flip-up Off |
Yes |
| Flip-down On |
Yes |
| Material |
Aviation aluminum |
| MTTF |
10,000 hours |
| Power Supply |
2.6–4.2V |
| Battery Type |
AA x2 |
| Infrared Wavelength |
850 nm |
| Red Light Wavelength |
808 nm |
| Digital Video (Optional) |
Exit Power 5V 1W |
| Operating Temperature |
-40°C to +50°C |
| Relative Humidity |
5%–98% |
